REGO Stainless Steel Globe Valves for Cryogenic Service SKS Advantage Series Short Stem

home
REGO Stainless Steel Globe Valves for Cryogenic Service SKS Advantage Series Short Stem
REGO Stainless Steel Globe Valves for Cryogenic Service SKS Advantage Series Short Stem
Price And Quantity
  • Piece/Pieces
  • 10
  • Unit/Units
  • 275000.00-
    Product Description
    Model Name/NumberSKS Advantage Series
    BrandREGO
    Body MaterialStainless Steel
    Usage/ApplicationCryogenic Liquids

    Application
    The SKS Series globe valves short stem are designed for handling of cryogenic liquids through bulk tanks, trucks, trailers, ISO-containers and piping configurations. Our time tested spring-loaded stem packing and superior seat design provide for long life and easy maintenance.

    Features
    Superior Flow: Provides high Cv for rapid and reliable loading and unloading.
    Designed with the unique Kold-Seal.
    Conical PCTFE Seat: provides exceptional flow; bubble-tight seal; less chance of debris trapped in the seat and longer service life.
    Connections: Socket Weld and Butt Weld.
    Sizes: to 1.
    Bonnet Type: Bolted.
    Pressure Rating: 720 psig (50 barg)
    Temperature Rating: -320F (-196C) to +150F (+65C).
    Service: Liquefied and Vaporized Atmospheric Gases and LNG for Trailers, Bulk Tanks, ISO-Containers and Piping Configurations.
    Cleaned for Oxygen service per CGA G-4.1.

    MaterialsBody ........................................... Stainless Steel ASTM A351 CF8 Bonnet and Tube Stainless Steel ASTM A351 CF8/ASTM A479 type 304 Stem .......................................Stainless Steel ASTM A582 S30300 Spring .....................................Stainless Steel ASTM A313 S30200 Packing................................................ Live-loaded PTFE Packing
    Gasket ............................................................PTFE 25% Glass Fill
    Seat Disc .......................................................PCTFE ASTM D1430
    Seat Retainer....................................................... Brass ASTM B16 Bonnet Screws .................................................ASTM B16 C36000 Handwheel......................................................... Painted Aluminum

    Quality / Facility Features
     Material traceability in accordance with BS EN 10204 3.1
    CE Marking per European Pressure Equipment Directive

    PED Certified
    Trade Information
    • 100 Per Week
    • 1 Week
      Related Products
      REGO Cryogenic Gas Relief Valve , ASME PRV194630 And PRV29430 Series


      Send Inquiry
      Rego LNG Female Vent Coupler FQD10 Series


      Send Inquiry
      Rego LNG Male Fueling Receptacle MFR50 Series


      Send Inquiry
      Rego Extended Stem Retrofit Kits


      Send Inquiry

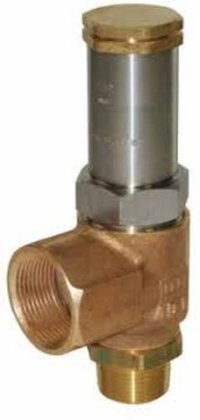

      REGO Angle Relief Valve, ASME AR4100 Series
